Insulated Fork Type Terminal Ends :


Insulated Fork Type Terminal Ends Insulated Fork Type Terminal Ends

  • MANUFACTURED FROM PURE ELECTROLYTIC COPPER.
  • COPPER LUGS & CABLE TERMINALS FROM 1.0 TO 10 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED.
  • LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
  • CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.
  •

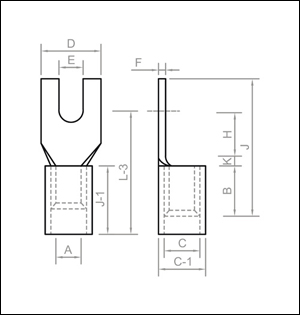

    INSULATED FORK TYPE TERMINAL ENDS

    CAT.NO
    AREA MM2
    DIMENTIONS (MM2)
    E
    A
    C
    D
    F
    B
    K
    H
    J
    C-1
    J-1
    L-3
    ZFI-SPL
    1.0
    3.5
    1.2
    2.8
    7.0
    0.8
    5
    2.0
    3.0
    13
    4.8
    10
    --
    ZFI-7925
    1.5
    5.1
    1.6
    3.2
    8.0
    0.8
    5
    2.0
    10.0
    21
    4.8
    10
    27.0
    ZFI-7926
    1.5
    3.5
    1.6
    3.2
    6.8
    0.8
    4
    --
    4.8
    13
    4.8
    10
    20.8
    ZFI-7927
    1.5
    3.0
    2.0
    2.8
    6.2
    0.4
    5
    2.4
    3.1
    13
    4.8
    10
    20.5
    ZFI-7928
    2.5
    3.5
    2.3
    3.9
    6.5
    0.8
    5
    2.5
    4.3
    15
    5.5
    10
    21.8
    ZFI-7929
    2.5
    5.0
    2.6
    4.6
    10.6
    1.6
    6.2
    --
    6.2
    21
    5.5
    10
    20.0
    ZFI-7930
    4-6
    3.1
    3.5
    5.5
    6.0
    1.0
    6
    --
    5.5
    15
    7.1
    14
    27.5
    ZFI-7931
    4-6
    3.5
    3.5
    5.5
    6.0
    1.0
    6
    --
    5.0
    15
    7.1
    14
    27.0
    ZFI-7932
    10
    6.5
    4.5
    6.9
    16.0
    1.2
    8
    --
    11.0
    27
    7.9
    16
    35.0
    ZFI-7933
    10
    8.2
    4.5
    6.9
    16.0
    1.2
    8
    --
    11.0
    27
    7.9
    16
    35.0
