Ring Type Terminal Ends With Metal Reinforcement :

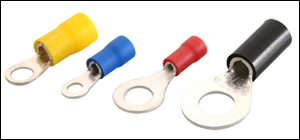

Ring Type Terminal Ends With Metal Reinforcement

Ring Type Terminal Ends With Metal Reinforcement

  • MANUFACTURED FROM PURE ELECTROLYTIC COPPER.
  • COPPER LUGS & CABLE TERMINALS FROM 1.5 TO 4-6 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED.
  • LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
  • CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.
    •

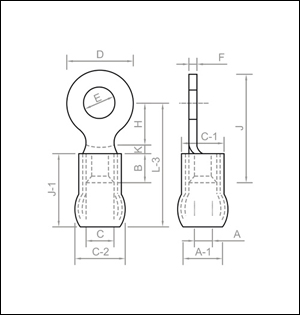

    RING TYPE TERMINAL ENDS WITH METAL REINFORCEMENT

    CAT.NO
    AREA MM2
    DIMENTIONS (MM2)
    E
    A
    C
    D
    F
    B
    K
    H
    J
    J-1
    L-3
    C-1
    ZRI-7053
    1.5
    2.6
    1.6
    3.2
    6
    0.8
    5
    2
    4
    14
    10
    16
    4.8
    ZRI-7054
    1.5
    3.2
    1.6
    3.2
    6
    0.8
    5
    2
    4
    14
    10
    16
    4.8
    ZRI-7055
    1.5
    3.7
    1.6
    3.2
    6
    0.8
    5
    2
    4
    14
    10
    16
    4.8
    ZRI-7056
    1.5
    4.2
    1.6
    3.2
    6
    0.8
    5
    2
    4
    14
    10
    16
    4.8
    ZRI-7058
    1.5
    3.7
    1.6
    3.2
    6.8
    0.8
    5
    1
    3.6
    13
    10
    14.6
    4.8
    ZRI-7059
    1.5
    4.2
    1.6
    3.2
    6.8
    0.8
    5
    1
    3.6
    13
    10
    14.6
    4.8
    ZRI-7061
    1.5
    4.2
    1.6
    3.2
    8
    0.8
    5
    2
    5
    16
    10
    17
    4.8
    ZRI-7062
    1.5
    5.2
    1.6
    3.2
    8
    0.8
    5
    2
    5
    16
    10
    17
    4.8
    ZRI-7063
    1.5
    4.2
    1.6
    3.2
    7
    0.8
    5
    1
    5
    14.5
    10
    16
    4.8
    ZRI-7065
    1.5
    5.2
    1.6
    3.2
    10
    0.8
    5
    2
    6
    18
    10
    18
    4.8
    ZRI-7066
    1.5
    6.4
    1.6
    3.2
    10
    0.8
    5
    2
    6
    18
    10
    18
    4.8
    ZRI-7067
    1.5
    6.4
    1.6
    3.2
    12
    0.8
    5
    1
    6
    18
    10
    17
    4.8
    ZRI-7068
    2.5
    3.2
    2.3
    3.9
    6.5
    0.8
    5
    1
    3.5
    12.7
    10
    14.5
    5.5
    ZRI-7069
    2.5
    3.7
    2.3
    3.9
    6.5
    0.8
    5
    1
    3.5
    12.7
    10
    14.5
    5.5
    ZRI-7070
    2.5
    3.7
    2.3
    3.9
    8
    0.8
    5
    2
    5
    16
    10
    17
    5.5
    ZRI-7071
    2.5
    4.2
    2.3
    3.9
    8
    0.8
    5
    2
    5
    16
    10
    17
    5.5
    ZRI-7072
    2.5
    5.2
    2.3
    3.9
    8
    0.8
    5
    2
    5
    16
    10
    17
    5.5
    ZRI-7073
    2.5
    5.2
    2.3
    3.9
    10
    0.8
    5
    1
    7
    18
    10
    18
    5.5
    ZRI-7074
    2.5
    6.4
    2.3
    3.9
    10
    0.8
    5
    1
    7
    18
    10
    18
    5.5
    ZRI-7075
    2.5
    5.2
    2.3
    3.9
    12
    0.8
    5
    2
    9
    22
    10
    21
    5.5
    ZRI-7076
    2.5
    6.4
    2.3
    3.9
    12
    0.8
    5
    2
    9
    22
    10
    21
    5.5
    ZRI-7591
    0.75
    4.2
    0.9
    2.1
    8
    0.6
    4

    --
    8
    16
    7.9
    15.9
    3.1
    ZRI-7077
    2.5
    8.2
    2.3
    3.9
    12
    0.8
    5
    2
    9
    22
    10
    21
    5.5
    ZRI-7079
    2.5
    8.2
    2.3
    3.9
    16
    0.8
    5
    2
    10
    25
    10
    22
    5.5
    ZRI-7081
    2.5
    10.2
    2.3
    3.9
    18
    0.8
    5
    1
    14
    29
    10
    25
    5.5
    ZRI-7083
    4-6
    4.2
    3.5
    5.5
    8
    1.0
    6
    2
    5
    17
    14
    21
    7.1
    ZRI-7084
    4-6
    5.2
    3.5
    5.5
    8
    1.0
    6
    2
    5
    17
    14
    21
    7.1
    ZRI-7086
    4-6
    5.2
    3.5
    5.5
    10
    1.0
    6
    3
    5
    19.0
    14
    22.0
    7.1
    ZRI-7087
    4-6
    5.2
    3.5
    5.5
    8
    1.0
    6
    3
    9.0
    22.0
    14
    26.0
    7.1
    ZRI-7089
    4-6
    6.4
    3.5
    5.5
    12
    1.0
    6
    2
    6.0
    20.0
    14
    22.0
    7.1
    ZRI-7090
    4-6
    8.2
    3.5
    5.5
    12
    1.0
    6
    2
    6.0
    20.0
    14
    22.0
    7.1
    ZRI-7092
    4-6
    6.4
    3.5
    5.5
    12
    1.0
    6
    3
    7.0
    22.0
    14
    24.0
    7.1
    ZRI-7093
    4-6
    6.4
    3.5
    5.5
    14
    1.0
    6
    2
    10.5
    25.5
    14
    26.5
    7.1
    ZRI-7094
    4-6
    8.2
    3.5
    5.5
    14
    1.0
    6
    2
    10.5
    25.5
    14
    26.5
    7.1
    ZRI-7096
    4-6
    8.2
    3.5
    5.5
    16
    1.0
    6
    3
    13.0
    30.0
    14
    30.0
    7.1
    ZRI-7099
    4-6
    10.2
    3.5
    5.5
    18
    1.0
    6
    3
    12.0
    30.0
    14
    29.0
    7.1
    ZRI-7100
    4-6
    12.7
    3.5
    5.5
    18
    1.0
    6
    3
    12.0
    30.0
    14
    29.0
    7.1
